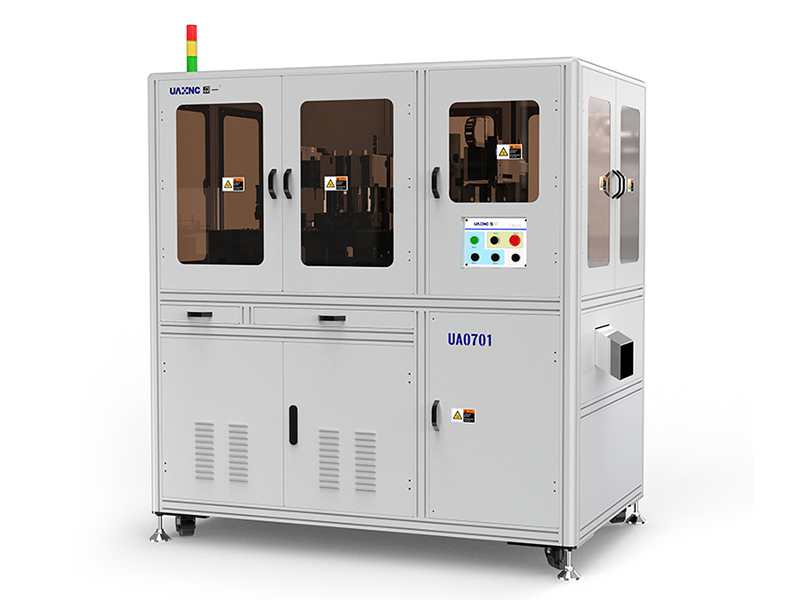

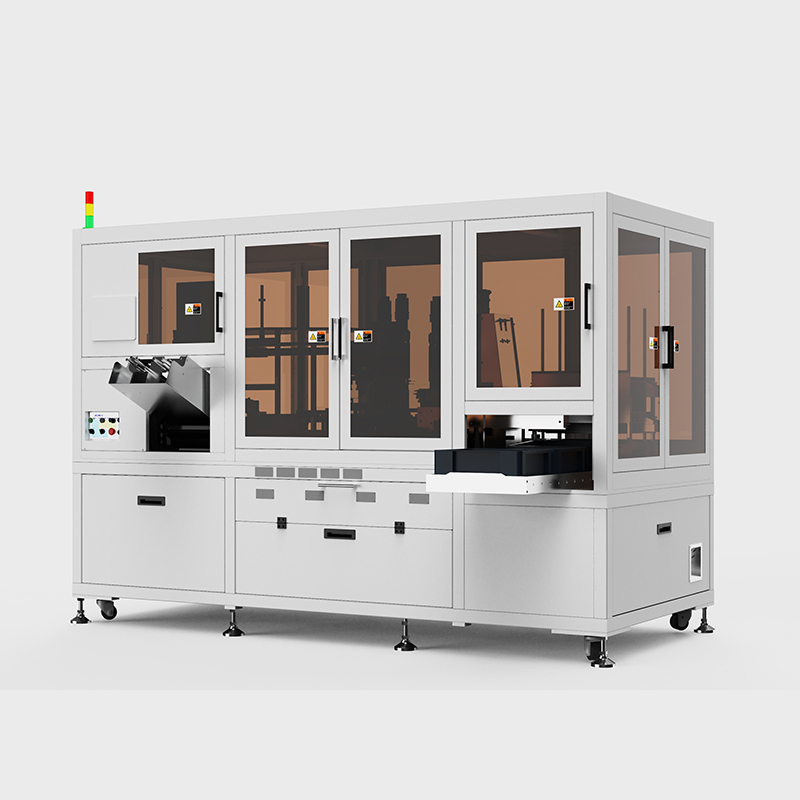

Optical testing equipment UA070
Equipped with high-resolution digital cameras, industrial-grade computers, LCD displays, and an AI detection system developed in-house, this cutting-edge machine combines precision. It comprises servo motors, a spindle, a glass platter, and an array of mechanical components, which together facilitate smooth, intermittent rotation of the central system for comprehensive part inspections. The system boasts advanced image processing capabilities and artificial intelligence algorithms that enable efficient and accurate detection of various elements on the glass substrate.
- unitecho
- China
- 30days
- 300
- Information
Optical testing equipment UA070 specification
| Equipment general technical parameters table | |
|---|---|
| Equipment type | Optical testing equipment UA070 |
| Equipment size | 1245x1245x1945mm |
| Rod diameter | 2-22mm |
| Rod length | 5-120mm |
| Head diameter | 2.5-30mm |
| Head thickness | 1-30mm |
| Number of cameras | 1-8 |
| Index plate diameter | 500mm |
| Index plate thickness | 8mm |
| Screening accuracy | ≧±0.005mm |
| Detection speed | 250 PCS /min |
| Air pressure specification | 5KG |
| Hd camera | Balser |
| Lens | Unitecho custom |
| Mainframe computer | Industrial grade computer |
| Detection software | Independent R&D |
| Electrical parts | Internationally renowned brand |
| Voltage | 220VAC(routine) |
| frequency | 50HZ/60HZ |
| Power | 4KW |
| Machine weight | 950KG |
Optical testing equipment Defect Detection Case
Optical testing equipment AI platform
