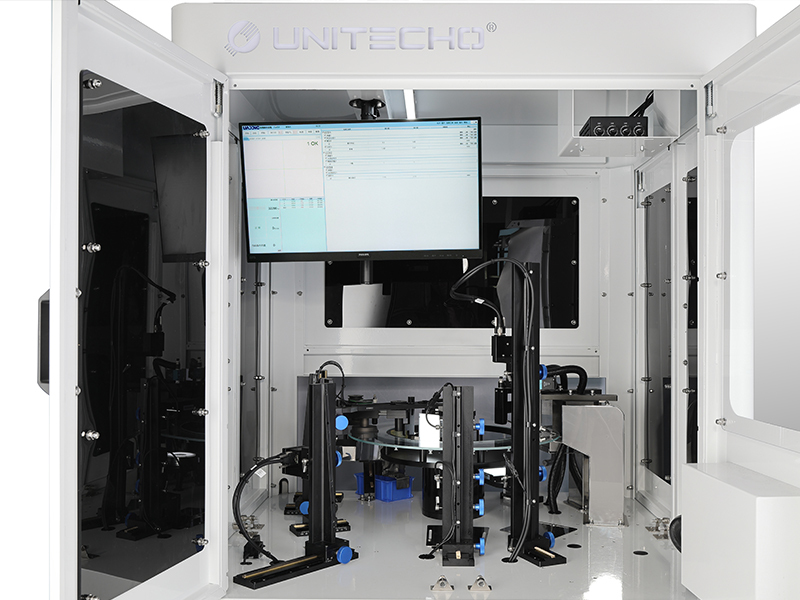

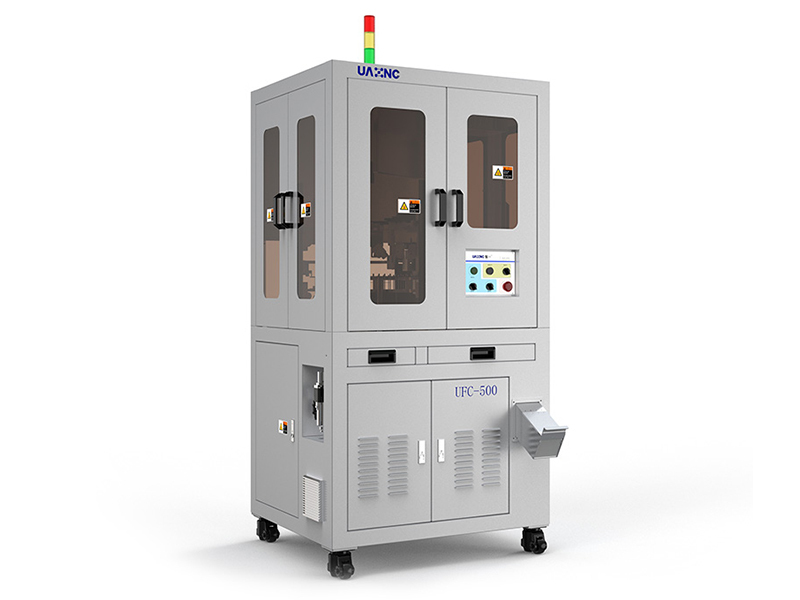

Optical detection equipment UFC-500
1, the use of glass high light transmission, can be smoothly placed on the glass plate workpiece, can be detected.
2, glass disc diameter 500mm, thickness 5mm.
3. Feeding method: belt conveyor type.
4, can detect the diameter of 5-100mm.
5, can be installed 1-4 cameras.
6, can increase the internal and external 360 "lens.
7, according to customer needs, increase the automatic packaging machine and automatic feeding system.
- Information
Optical detection equipment specification
| Equipment general technical parameters table | |
|---|---|
| Equipment type | UFC-500 |
| Equipment size | 1000x1000x1850mm |
| Workpiece diameter | 5-100mm |
| Total length of work | 2-150mm |
| Number of cameras | 1-4 |
| Disc diameter | 500mm |
| Screening accuracy | ≧±0.002mm |
| Detection speed | ≦1200 pieces/min |
| Air pressure specification | 5KG |
| Hd camera | Balser |
| Lens | Unitecho custom |
| Mainframe computer | Industrial grade computer |
| Detection software | Independent R&D |
| Electrical parts | Internationally renowned brand |
| Voltage | 220VAC(routine) |
| frequency | 50HZ/60HZ |
| Power | 3KW |
| Machine weight | 750KG |

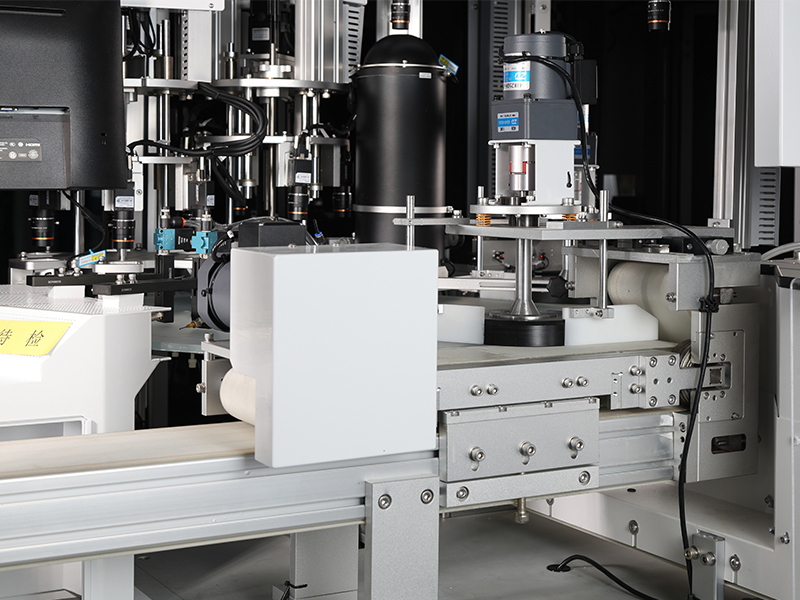

Optical detection equipment details
Optical detection equipment Defect Detection Case
Optical detection equipment AI platform
