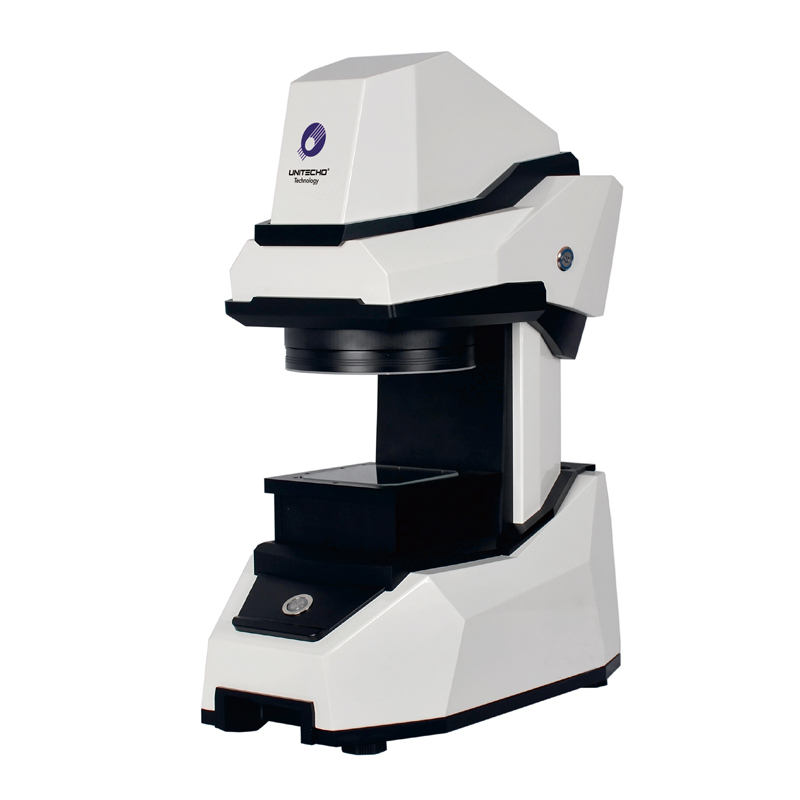

A one-button rapid measurement system
1. The one-button rapid measurement system boasts unparalleled convenience, allowing users to execute precise readings with minimal effort and training.
2. Its streamlined design enhances efficiency, saving time by eliminating the need for complex setup or multiple steps in the process.
3. Thanks to its advanced technology, it ensures high accuracy and reliability, delivering consistent results even under rapid-paced production environments.
- unitecho
- China
- 30day
- 30000
- Information
Fast optical sorting machine Parameter
| model | OMQ100C | OMQ120C | OMQ100D |
| Measuring stroke(mm) | 82×55 | 120×80 | 82×55/20×13 |
| Z-axis movement | automatic | automatic | automatic |
| Optical lens | Bi-telecentric optical lens | Bi-telecentric optical lens | Double telecentric double magnification optical lens |
| Image sensor (pixels) | 20 million | 20 million | Double 20 million |
| Measuring accuracy (μm) | ±(2.5+L/50) | ±(2.5+L/50) | ±(2.5+L/50) |
| ±(1.5+L/50) | |||
| Repeatability(μm) | ±1.5 | ±1.5 | ±1.5 |
| ±1.0 | |||
| light source | 256-level programmable light source Contour light: telecentric parallel light Surface light: LED ring light | ||
| Image Processing | IVT advanced image analysis method, 256 gray levels, 20:1 sub-pixel processing technology | ||
| software | VT-VSION | ||
| Minimum display unit (mm) | 0.00001 | ||
| Z axis moving range (mm) | 45 | ||
| Z axis working distance (mm) | 145 | ||
| Dimensions (mm) | 260×450×660 | 280×480×680 | 260×480×800 |
| Weight(KG) | 28 | 45 | 35 |
| Load-bearing capacity(KG) | 5 | ||
| Work Environment | Power supply: 220V/50Hz Vibration: <0.002mm/s, <15Hz Temperature: 22℃±5℃ Humidity: 20~80% | ||
| Optional | 1. Special models and software functions can be customized 2. Optional manual lifting work platform 3. Optional surface coaxial light | ||
Fast optical sorting machine features
Measuring More Than 100 Sizes in 1 Second
Traditionally, longer measurement times were associated with more positions, but with IT-VISION, the process has been revolutionized. It can swiftly measure over 100 dimensions within just one second, significantly reducing the time spent on measurement tasks.
Ease of Operation for All Users
The intuitive user interface is simple and accessible, allowing anyone to achieve consistent results with just a click on the screen buttons. Moreover, step-by-step instructions are displayed within the screen, making it effortless for anyone to set up measurements.
Unified Data Management
As soon as the measurement is complete, IT-VISION automatically saves the data, streamlining data storage and management. Generating inspection reports is as easy as a single button press, further enhancing post-measurement efficiency.
Efficient Post-Processing After Measurement
No need to locate or orient the measurement object; IT-VISION detects the shape and position automatically once it's placed on the coordinate stage. Eliminating the requirement for fixtures, it simplifies the process without any need for manual adjustments.
Free from Focusing Errors
Equipped with a deep-focus optical lens designed specifically for precision, IT-VISION also incorporates an auto-focusing feature. This allows for automatic adjustment based on the measurement position, minimizing focus-related errors due to operator differences when dealing with uneven surfaces.
In 1 Second:
- Measures >100 sizes effortlessly
- Reduces measurement time drastically
- Intuitive UI for all: simple clicks, clear guidance
- Automatic data saving & reporting
- Efficient post-measurement workflow
- No object placement or alignment needed
- Advanced focusing technology, eliminates operator-induced errors
