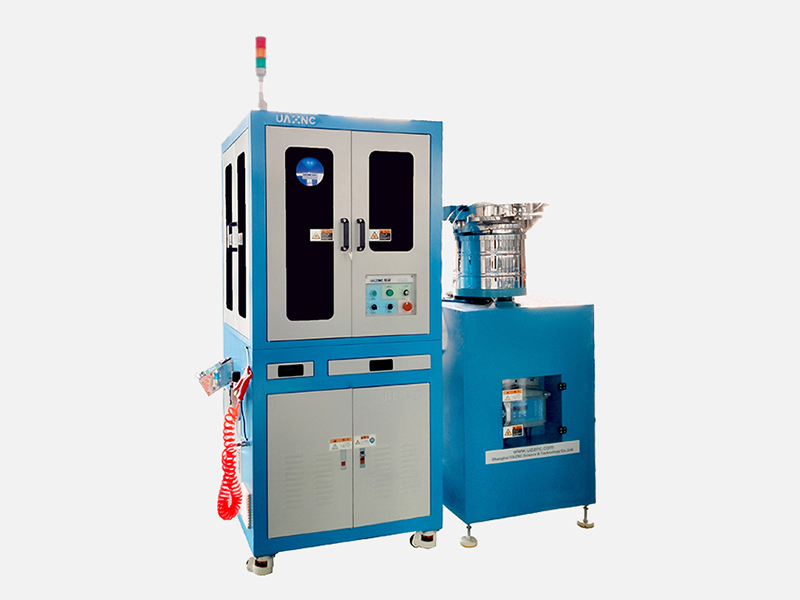

Indexing disc pin type optical screening machine
This optical sorting machine employs a vibratory feeder to distribute and feed products linearly, which then move onto a stepwise indexing plate driven by an intermittent divider. The products perform intermittent circular motion for continuous inspection. High-speed industrial cameras are employed for visual inspection and automatic sorting of the items.
The device boasts a detection precision of ≤0.01 millimeters, demonstrating its remarkable accuracy. Its maximum inspection speed reaches an impressive rate of 1,000 pieces per minute, ensuring efficient and high-speed processing.
- unitecho
- China
- 30 days
- 600
- Information
Indexing disc pin type optical screening machine description

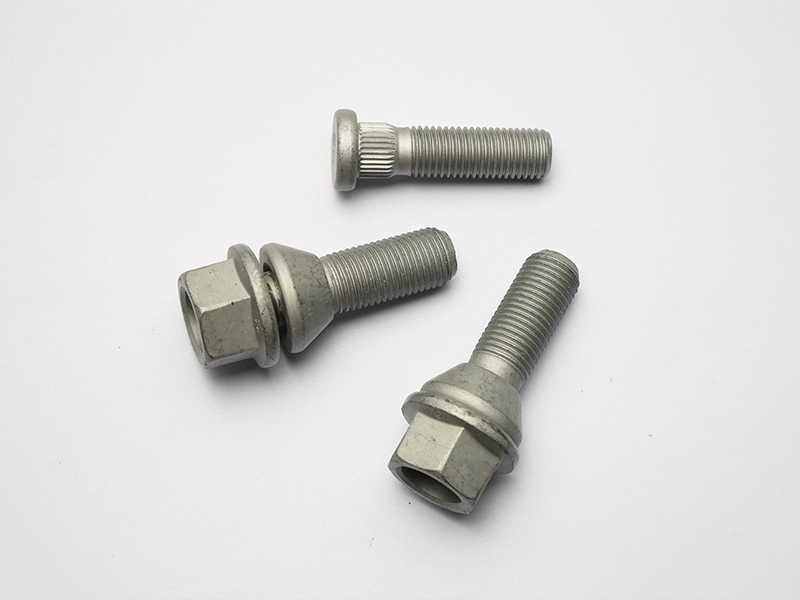

This equipment is primarily designed for automated inspection of product appearance, shape, and dimensional characteristics. It caters to a wide range of test projects, applicable to standard or non-standard components like screws and nuts in fasteners. Key detection features include:
1. Thread height
2. Thread diameter
3. Slot type (hexagonal, cross, or straight)
4. Depth
5. Major thread diameter
6. Minor thread diameter
7. Pitch
8. Thread length
9. Thread angle
10. Poor threading quality
11. Tapered tip at the end
12. Presence of plating
13. Hole alignment accuracy
14. Roundness
15. Head cracks
16. Stud head height
17. Contamination or defects within the slot
18. Other relevant visual defects
These are some of the many parameters that can be inspected automatically.

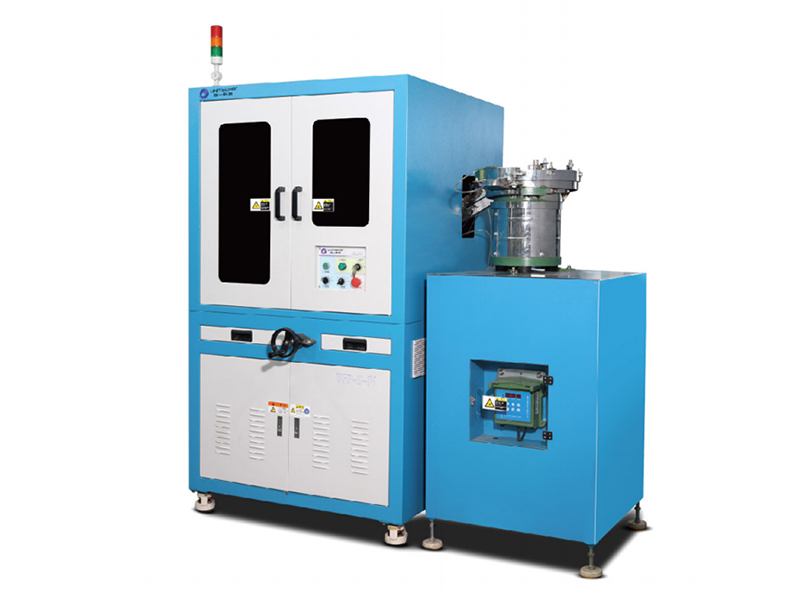

Indexing disc pin type optical screening machine UFP-B-IV
| Equipment general technical parameters table | |
|---|---|
| Equipment type | UFP-B-IV |
| Equipment size | 1060*1060*2050 |
| Overall weight | 800kg |
| communication | Network port (OPC/WebAPI, TCP/IP, SQLServer) |
| Voltage | 220V/50Hz |
| Atmospheric pressure | 0.5-0.8Mpa |
| Equipment technical parameters table | |
|---|---|
| Check workpiece size | Rod diameter 2-18mm, length 5-80mm; Head diameter2.5-35mm, diameterdiameter1-30mm |
| Test item | Head thickness, diameter, hole depth, rod length, hole blocking, cracking, hole accumulation and other dimensional appearance defects |
| Detection speed | 400PCS /min |
| Software system | Independent R&D |
| Detection accuracy | ≥士0.005mm |
| Hd camera | Bassler, Hikon |
| Loading mechanism | Vertical loading machine, climbing machine, etc |
| Optical glass disc | Diameter 285mm, thickness 7mm |
| Industrial computer | Industrial grade computer |
| Discharge opening | 3-6 receiving boxes (optional according to customer demand) |
Indexing disc pin type optical screening machine UFP-B-IV
Indexing disc pin type optical screening machine UFP-B-IV
