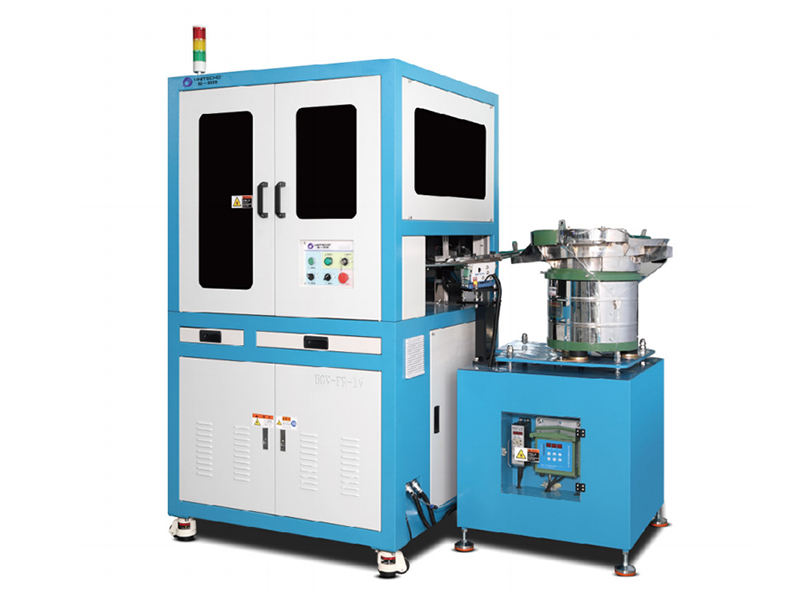

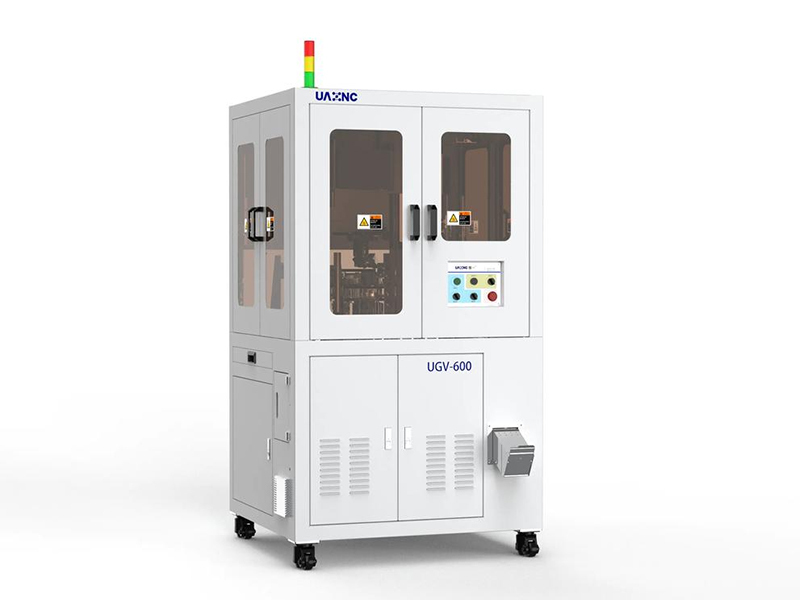

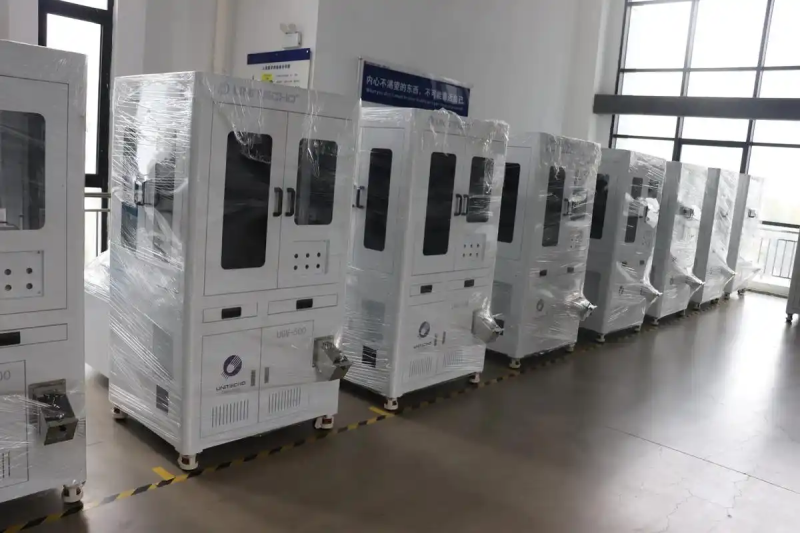

Glass disc type optical screening machine
The Glass Disc Type Optical Screening Machine, often referred0 as a GDTSM, offers several distinct advantages in the field of optical inspection. Key among these are:
1. High Resolution: The glass disc design provides exceptional clarity and image quality, enabling the detection of even minute defects with unparalleled accuracy, crucial for industries such as electronics and semiconductor manufacturing.
2. Stable Performance: The solid structure ensures consistent results over time, minimizing environmental influences on the inspection process, thus enhancing the reliability of the machine.
3. Customizable Optics: The modular design allows for easy customization of lenses and filters, adapting to the specific requirements of various products and inspection needs.
4. Efficiency: GDTSMs boast rapid data processing and automated analysis, reducing human intervention and speeding up production line throughput.
5. Environmentally Friendly: By detecting defects early, it reduces waste and promotes a more sustainable manufacturing process.
6. Scalability: With its flexible architecture, the machine can accommodate growth in production volume without needing major upgrades, making it a cost-effective long-term investment.
7. User-Friendly Interface: The machine typically features an intuitive interface that simplifies operation and maintenance tasks, enhancing overall productivity.
Glass Disc Type Optical Screening Machine combines precision, reliability, adaptability, and efficiency, making it an indispensable tool for modern inspection processes.
Glass disc type optical screening machine specification
| Equipment general technical parameters table | |
|---|---|
| Equipment type | UGV-FR-IV |
| Equipment size | 1280*1280*2100 |
| Frame sheet metal | Sheet metal forming, surface spraying, baking paint |
| Overall weight | 700kg |
| communication | Network port (OPC/WebAPI, TCP/IP, SOLServer) |
| Voltage | 220V/50Hz |
| Atmospheric pressure | 0.5-0.8Mpa |
| Equipment technical parameters table | |
|---|---|
| Check workpiece size | Diameter 5-120mm, length 2-150mm |
| Test item | Opposite side diagonal, head size, inside and outside diameter, rod part, cracking, tooth damage, pits and other dimensional appearance defects |
| Detection speed | ≤800PCS /min |
| Software system | Independent R&D |
| Detection accuracy | ≥士0.002mm |
| Hd camera | Bassler, Hikon |
| Loading mechanism | Vertical loading machine, climbing machine, storage bin, etc |
| Optical glass disc | Diameter 800, thickness 8mm high light transmission, high precision |
| Industrial computer | Industrial grade computer |
| Discharge opening | 3-6 receiving boxes (optional according to customer demand) |
Glass disc type optical screening machine Defect Detection Case
