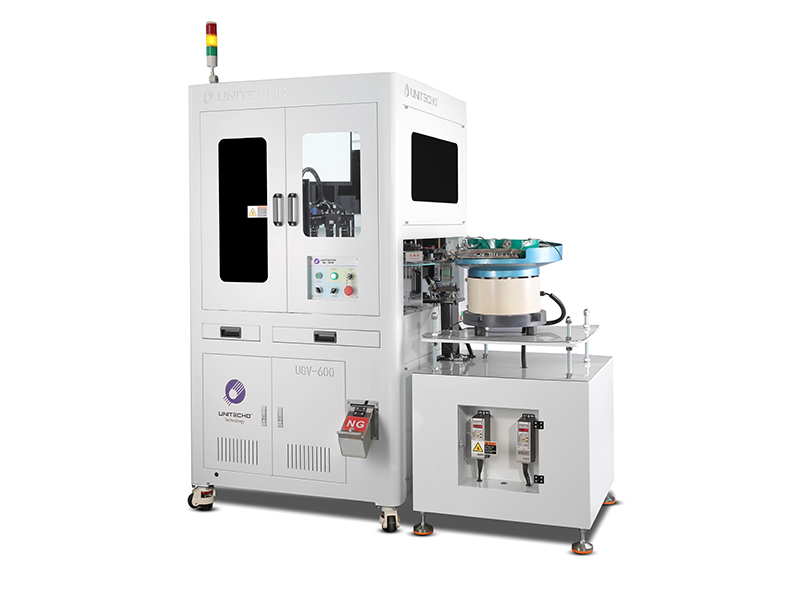

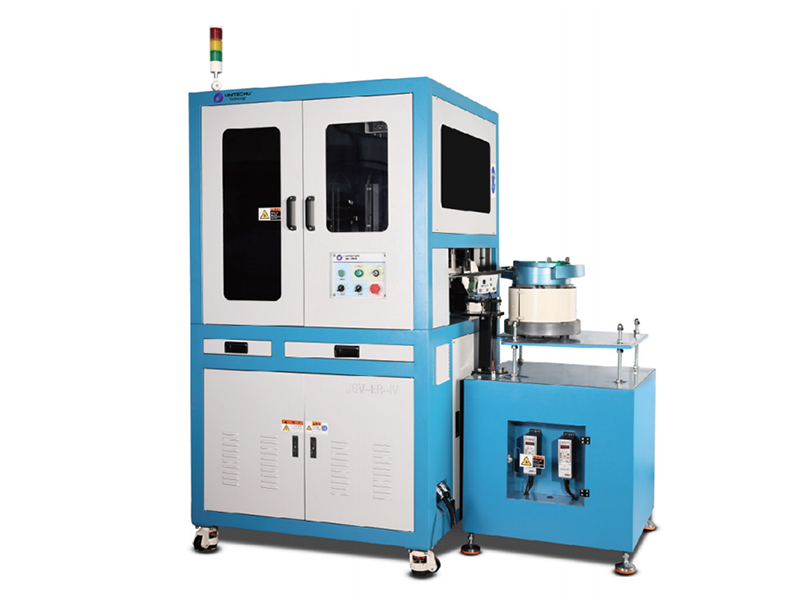

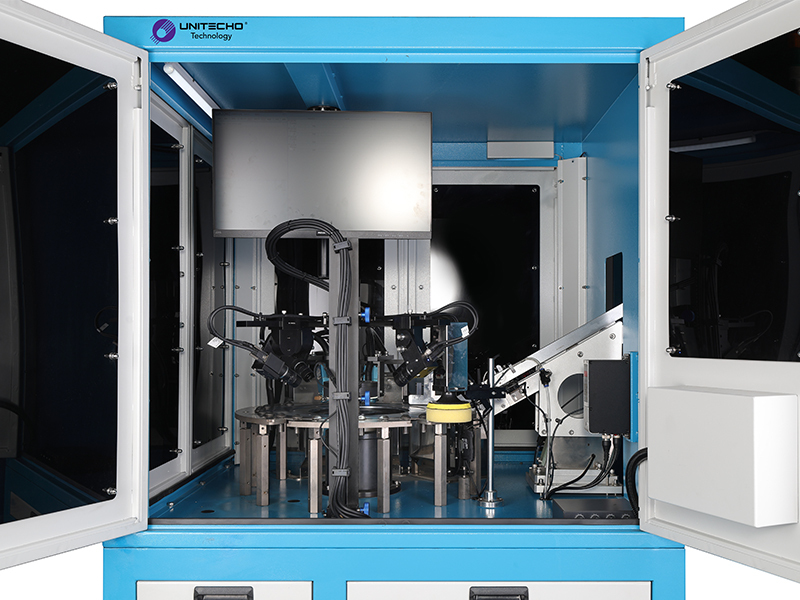

Disk-shaped optical inspection machinery
1. Leveraging glass's high transparency, objects can be stably placed on the inspection platform, making it compatible with a broad range of items.
2. Wide detection scope: Applicable to fasteners, mobile phone components, rubber products, electronic components, irregular hardware, and more.
3. Customizable camera setup: Additional 2-6 cameras can be added based on the specific testing requirements.
4. Detection speed: Varies depending on the object and feeding system, reaching up to 500-1200 pieces per minute in optimal conditions.
5. Tailored to customer needs: Can include automatic counting and packaging machines, as well as automatic refilling units, upon request.
6. Quick part replacement and user-friendly operation.
- unitecho
- China
- 30 days
- 1500
- Information
Glass disc type optical screening machine Specification
The technology is capable of inspecting a wide range of components in various industries, such as automotive, aerospace, railway transportation, and electronics, including over 3000 types of fasteners like metal or molded parts like electronic screws, wood screws, nuts, washers, O-rings, semiconductor devices, copper connectors, machined components, and unique specialty parts. This encompasses a diverse range of tests that assess:
Dimensional accuracy
Presence of obstructions in threads (thread blockage)
Inner and outer diameter measurements
Thread pitch
Barcode and OCR (Optical Character Recognition) recognition capabilities
And supports additional levels of identification and inspection requirements
This system provides comprehensive quality control for an extensive variety of industrial components.
| Equipment general technical parameters table | |
|---|---|
| Equipment type | UGV-ER-IV |
| Equipment size | 1060*1060*2100 |
| Frame sheet metal | Sheet metal forming, surface spraying, baking paint |
| Overall weight | 600kg |
| communication | Network port (OPC/WebAPI, TCP/IP, SOLServer) |
| Voltage | 220V/50Hz |
| Atmospheric pressure | 0.5-0.8Mpa |
| Equipment technical parameters table | |
|---|---|
| Check workpiece size | Diameter 5-120mm, length 2-150mm |
| Test item | Opposite side diagonal, head size, rod part, inner hole, pit, cracking, tooth damage and other dimensional appearance defects |
| Detection speed | ≤1000PCS /min |
| Software system | Independent R&D |
| Detection accuracy | ≥士0.002mm |
| Hd camera | Bassler, Hikon |
| Loading mechanism | Vertical loading machine, climbing machine, storage bin, etc |
| Optical glass disc | Diameter 600, thickness 6mm high light transmission, high precision |
| Industrial computer | Industrial grade computer |
| Discharge opening | 3-6 receiving boxes (optional according to customer demand) |
Glass disc type optical screening machine Defect Detection Case
Glass disc type optical screening machine Al platform
