Fastener optical sorting machine
The Screw Optical Imaging Sorting Machine, also known as a Machine Vision Inspection System, operates through the use of Charge-Coupled Device (CCD) cameras to convert the inspected objects into image signals. These signals are transformed into digital format by analyzing pixel distribution and brightness, color information. The image processing system performs various calculations to extract features such as area, count, position, and length from the images. Based on predefined thresholds and criteria, it generates output results, including dimensions, quantity, screw sorting pass/fail assessments, presence/absence, and other relevant parameters. This technology enables automatic detection and recognition, facilitating a highly efficient and accurate inspection process.
- unitecho
- China
- 15days
- 1500
- Information
Fastener optical sorting machine function
Equipment Function: It serves as a replacement for manual product dimension inspections, specifically sorting out items with defective appearances.
Equipment Principle: Utilizing CCD measurement technology, it rapidly captures multi-dimensional feature sizes and real-time measurement data of products, along with edge contour characteristics at different positions. By employing powerful software algorithms, the system analyzes features visible in the CCD images, calculates the associated dimensions, and makes precise judgments on product specifications.
Equipment Functions: The primary function of this inspection system is to examine the appearance of metal products and carry out the selection process.

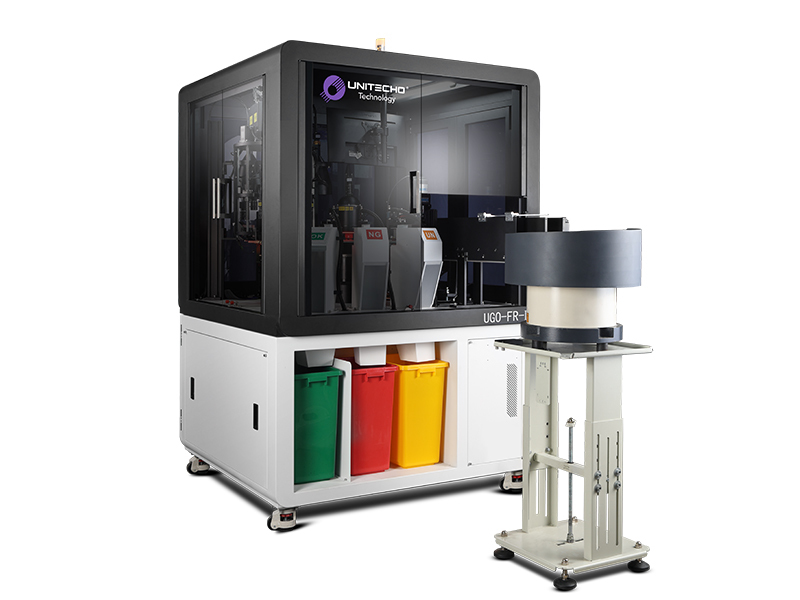

Equipment Composition: Key components include the feeding system, vibratory feeder, rotating worktable, industrial camera, and control system. The system facilitates automated processes such as automatic material feeding, inspection, sorting, and dispensing without manual intervention.
Fastener optical sorting machine Detection project
Fastener optical sorting machines, equipped with advanced imaging technology and artificial intelligence algorithms, are designed to revolutionize the quality control process for fasteners. These machines excel at detecting a range of defects that might otherwise go unnoticed by human inspectors. They can efficiently identify:
1. Size inconsistencies: Measuring precise dimensions, these systems can sort fasteners based on their nominal size variations.
2. Shape irregularities: They analyze the geometry of the head, thread, or body for anomalies, ensuring conformity to industry standards.
3. Material defects: Scanning for surface flaws like scratches, dents, or discoloration, they detect metal fatigue or corrosion spots.
4. Surface finish issues: Optical sensors can differentiate between smooth and rough textures, catching grit, rust, or other surface imperfections.
5. Presence/absence of coatings: They verify if a protective layer is applied correctly, including color matching and adhesion checks.
6. Defective threading: The machines inspect the thread integrity, identifying pitch errors or broken threads.
By using real-time inspection, fastener optical sorting machines significantly improve efficiency, reduce waste, and ensure the output meets the highest quality standards in the manufacturing process.
