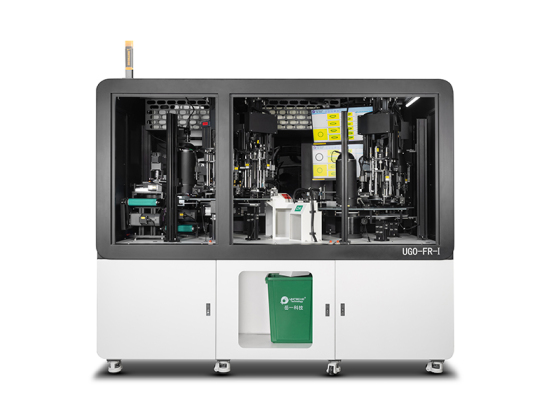

Single glass disc optical sorter
Automatic visual inspection machine with single table for small O-Ring and generic pieces.
In each version, the feed system loads the parts onto a conveyor belt, then a motorized diverter transfers them onto a rotary glass table. From this point on, every single part is inspected for defects and dimensional accuracy by a series of dedicated vision inspection stations.
- unitecho
- China
- 15days
- 1500
- Information
Single glass disc optical sorter advantage
A high-accuracy deep learning detection algorithm specifically tailored for industry needs is developed to identify subtle defects in manufacturing. By incorporating mechanical flipping technology, this solution ensures comprehensive inspection of both sides in terms of appearance and dimensions. The system boasts an intuitive and user-friendly design, featuring intelligent and digital displays, modular software connectivity, and a visually clear interface that requires minimal parameter setup. The overall operation is streamlined and straightforward, making it accessible even for non-experts.
Automatic visual inspection machine Parameter
| Equipment Model | UGO-FB-3 |

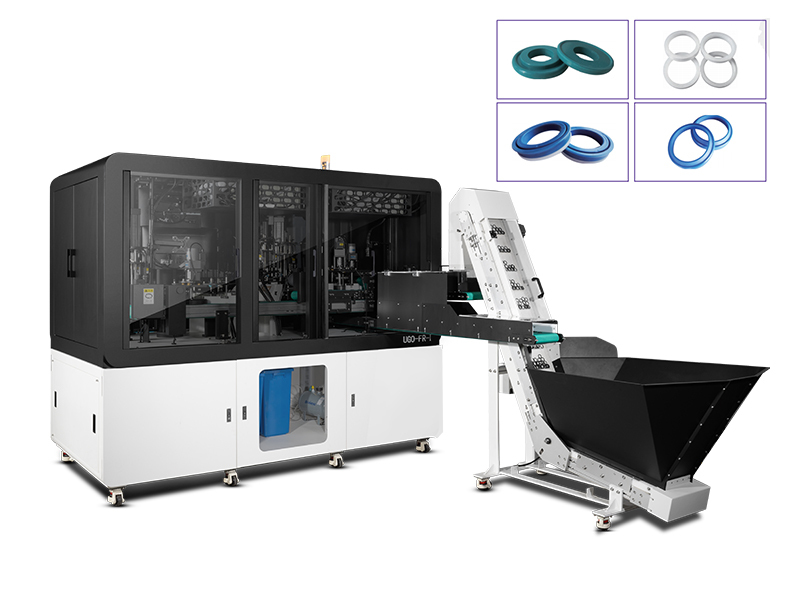

| Detected Product Types | O-rings, flat washers, rectangular gaskets, bearing seals, oil seals, etc. |
| Size Detection Range | Outer diameter: 5-65mm, Thickness: 1.0mm-6.0mm |
| Appearance Inspection Items | Scratches, burrs, streaks, missing material, adhered rubber, pitting, cracks, fractures, mold dirt, dents, impurities |
| Dimensional Inspection Items | Inner diameter, outer diameter, wire diameter, thickness |
| Inspection Speed | 120-1000 pieces/min (depending on product specifications or camera count) |
| Detection Accuracy | Repeatability ±0.01mm |
| Software System | (In-house developed) |
| Camera Modules | 3-9 cameras, customizable camera count selection |
| Lenses | Customized lenses |
| Industrial PC | Industrial-grade computer |

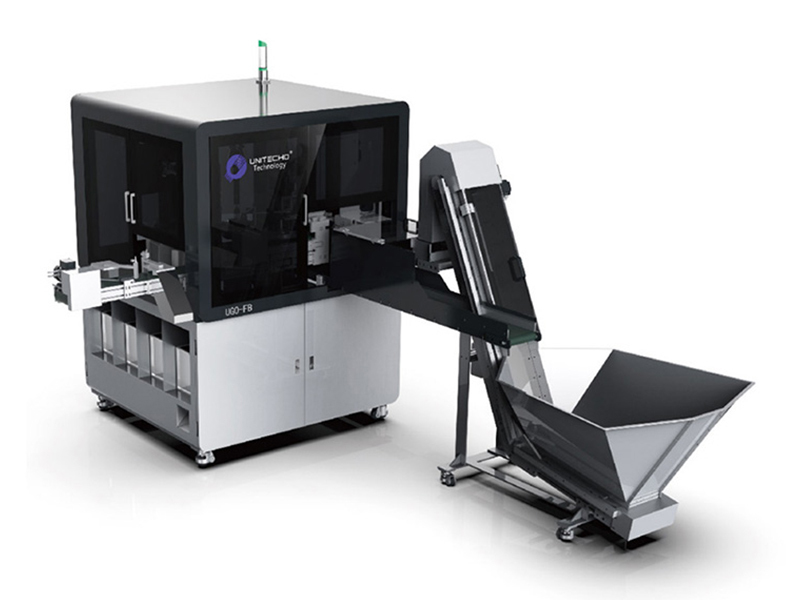

| Infeeding Mechanism | Steep incline conveyor for automatic feeding |
| Outlet(s) | 5 exit ports - OK, dimensional NG, flat surface NG, NG, Uncertain |
Single glass disc optical sorter structure
