Software Advantages
Unlimited Shape Compatibility
Designed specifically for non-standard hardware that defies automatic feeding. Whether it's easily entangled springs, large buckles, or odd-shaped brackets, the manual feeding station allows operators to place any item directly into the bag, bypassing the limitations of vibratory bowls.

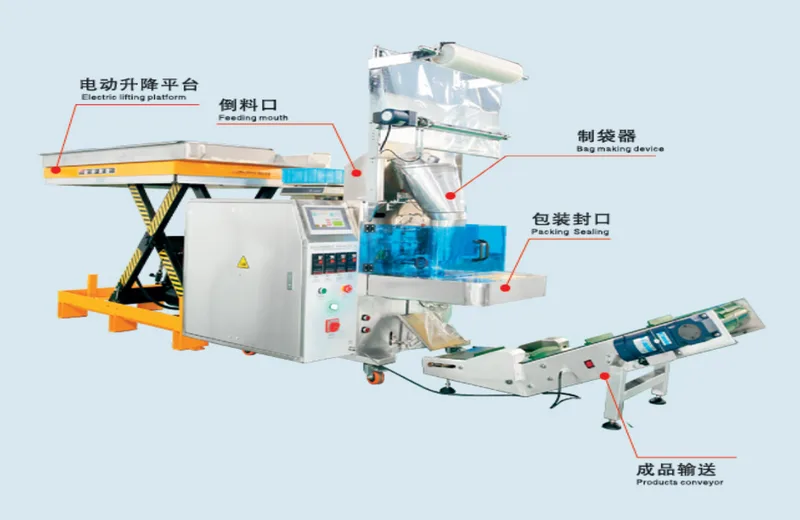

Ergonomic Electric Lifting Platform
Features an integrated electric lifting table that adjusts the machine height for operator comfort. This ergonomic design reduces fatigue during manual loading and facilitates easier maintenance and film roll changes.
Rapid Changeover for High-Mix Low-Volume
Ideal for "High-Mix, Low-Volume" production. Since there are no vibratory bowls to tune, switching from packaging Product A (e.g., a 10cm rod) to Product B (e.g., a 2cm clip) takes only minutes—just adjust the bag length on the touch screen.
Robust Vertical Bagging System
Despite manual feeding, the machine utilizes a professional vertical form-fill-seal mechanism. It produces high-quality Back Seal bags using durable films (Composite, Aluminum Foil), ensuring professional presentation and protection for heavy or sharp metal parts.
Usage Scenarios
Automotive Stamping Parts
The manual feeding system is essential for packaging complex stamped brackets or clips that are prone to interlocking or jamming in automatic feeders.
Automotive Plastic Parts & Structural Components
Ideal for larger plastic interior parts or delicate trim components where automated vibration might cause surface scratches or breakage.
Automotive Precision Turned Parts
Suitable for long shafts or special automotive pins (up to 900mm bag length) that are too long for standard counting machines.
Electronics Structural Components
Provides a safe packaging solution for sensitive structural frames or larger metal backplates. Manual placement ensures zero impact damage during the bagging process.
Electronics Metal Hardware
Perfect for small batches of specialized computer chassis parts or irregular heat sinks that don't justify the setup cost of a fully automatic line.
Military Special Material Components
The best choice for packaging high-value, low-volume tungsten or ceramic parts. Manual handling allows operators to visually inspect each piece before placing it in the bag, ensuring 100% quality control.
Ammunition Components
Can be used for the careful packaging of larger shell casings or special projectile components where mechanical feeding poses a safety risk due to friction or impact.
Product Parameters
| Technical Parameters | Details |
|---|---|
| Production capacity | 5-12 bag/min |
| Measuring range | Self determination |
| Bag making forms | Back to seal |
| Total power | 1.2 KW |
| Net weight | 270 kg |
| Power supply voltage | 220V 50-60Hz |
| Bag size | length(L): 40-900mm; wide(W):100-300mm |
| Packaging materials | Composite membrane materials, aluminum foil, heat sealing film |
| Dimensions | 2.0(L) × 1.0(W) × 1.5(H)m |
