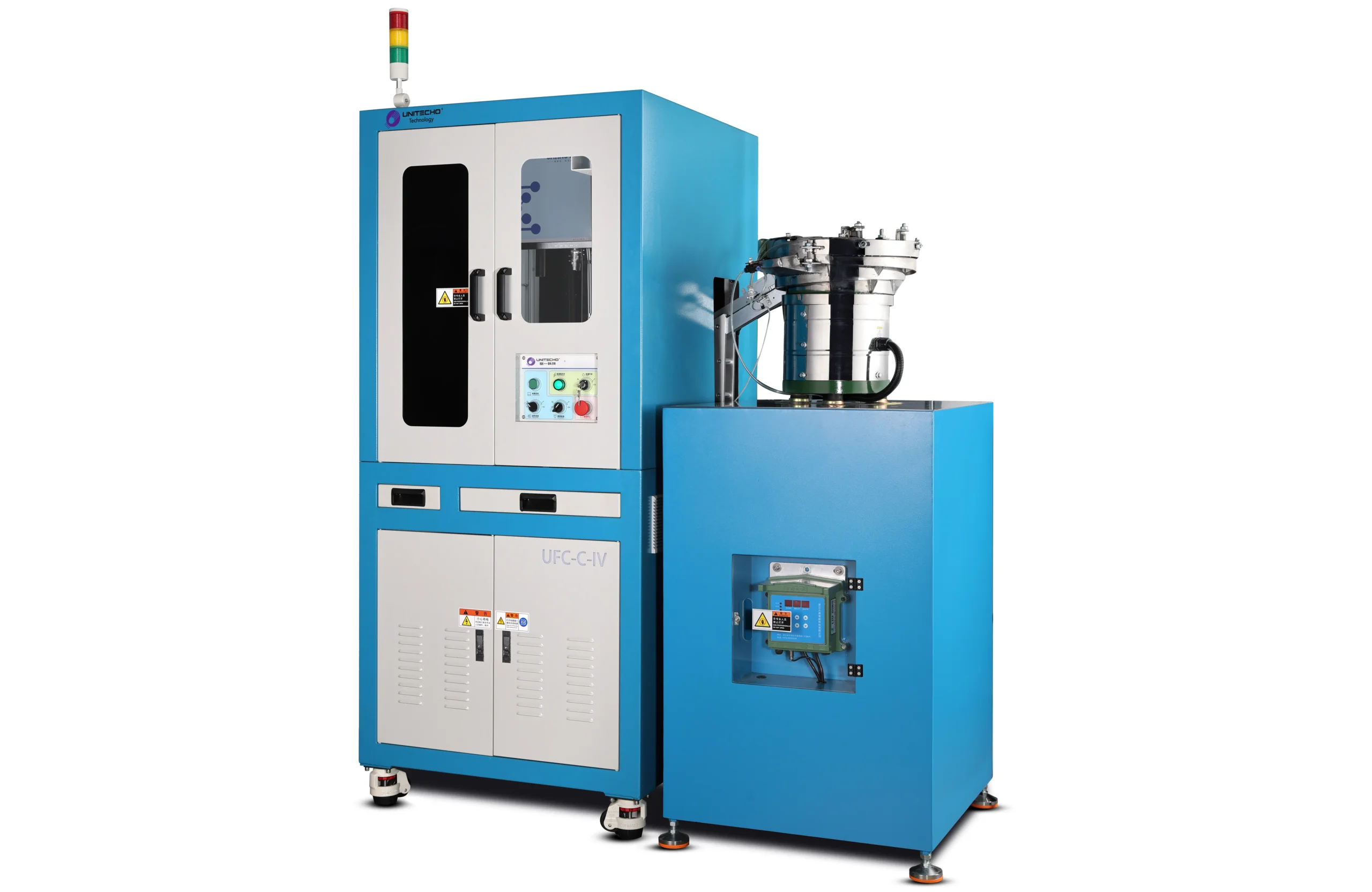

UFC-C-IV Index Plate Metal Parts Optical Sorting Machine
High-Precision Index Inspection for Fasteners and Non-Standing Parts
The UFC-C-IV is a specialized index plate optical sorting machine designed specifically for the rigorous inspection of workpieces that cannot stand independently, such as screws, bolts, and suspended components. Built with a 300mm detection disc and a robust rail conveyor feeding system, this machine utilizes a 4-camera setup to perform comprehensive dimensional and defect analysis. With a detection speed of ±450 pcs/min and industry-leading accuracy of ≥ ±0.002mm, the UFC-C-IV is the ideal solution for manufacturers requiring zero-defect quality control for hanging automotive fasteners, medical screws, and precision hardware.
✅ 300mm Index Plate System
Optimized for Hanging/Suspended Workpieces
✅ 4-Camera Optical Array for Multi-Angle Thread and Surface Inspection
✅ AI-Powered Deep Learning with NVIDIA High-Computing Graphics Card
✅ High-Precision Sorting up to ±450 pcs/min with ≥ ±0.002mm Accuracy
Software Advantages
Specialized Index Plate for Hanging Parts
Designed for non-standing workpieces, the 300mm Index Plate Optical Sorting Machine securely suspends screws and bolts via a rail conveyor for stable inspection. This approach prevents the toppling issues common with flat belt sorters, guaranteeing reliable handling of top-heavy components.
AI-Powered Intelligent Defect Recognition
Powered by UNITECHO’s proprietary AI ecosystem and NVIDIA acceleration, the system intelligently distinguishes complex defects like cracks from normal surface variations. This deep learning capability enables rapid defect model generation, significantly reducing setup time and minimizing false rejection rates.
Micron-Level Dimensional Precision
Equipped with a high-resolution four-camera array, the 300mm Index Plate Optical Sorting Machine delivers industry-leading accuracy of ≥ ±0.002mm for critical dimensions. This precision ensures detection of the slightest deviations or internal blocked holes, meeting the most rigorous quality standards.
High-Speed Throughput Efficiency
Achieving inspection speeds of up to 450 pieces per minute, this system significantly boosts production throughput without compromising reliability. Its efficient clockwise or counterclockwise rail feeding mechanism maintains a continuous, jam-free flow to maximize daily output.
Seamless Automation Integration
The 300mm Index Plate Optical Sorting Machine allows for flexible integration with vertical feeders and automatic packaging systems for smart factory operations. This modular connectivity reduces manual handling, streamlining the entire quality control process from initial feeding to final boxing.
Usage Scenarios
Automotive Precision Machined Parts
Offering superior stability for elongated automotive shafts and pins, this unit measures concentricity and length tolerances of ±0.002mm. It guarantees precise fitment in engine and transmission systems by preventing part wobbling during inspection.
Automotive Fasteners
The UFC-C-IV stabilizes hanging automotive bolts, hub screws, and rivets on its index plate for comprehensive thread and head inspection. It effectively detects critical defects like thread damage and cracks, ensuring the structural integrity of vehicle assemblies.
Electronics Metal Hardware
The system gently handles delicate micro-screws and suspended fasteners for smartphones using precision rail feeding. It enforces strict dimensional specifications to prevent assembly failures in automated electronic production lines.
Semiconductor Interconnects
The UFC-C-IV is highly effective for inspecting elongated connector pins, pogo pins, and terminal leads used in semiconductor packaging. Its stable rail conveyance ensures accurate measurement of pin straightness and plating integrity, which are critical for reliable electrical connectivity.
Medical Fasteners
Designed for high-hygiene manufacturing, this machine inspects bone screws and dental implants for microscopic burrs and blocked cannulations. High-resolution optics identify surface contamination to ensure patient safety and sterilization compliance.
Military Precision Fasteners Optical Sorting Solution
Mission-critical aerospace fasteners undergo rigorous inspection for stress fractures and precise thread geometry using AI-driven analysis. This ensures special alloy bolts meet zero-defect military standards for extreme operational environments.
Ammunition Components Optical Sorting Solution
Ideally suited for cartridge casings, the machine checks for "blocked holes" and internal dimensions to prevent firing malfunctions. It rapidly verifies vent holes and detects casing deformations with high-speed precision.
Product Parameters
| Model | UFC-C-IV | UFC-D-IV | UFP-B-IV | UFP-D-IV | |
|---|---|---|---|---|---|
| UFC-C-IV | UFC-D-IV | UFP-B-IV | UFP-D-IV | ||
| Equipment Parameter | Detection disc diameter | 300mm | 500mm | 285mm | 500mm |
| Equipment size | 8608601913 | 106010601913 | 106010601870 | 124412441870 | |
| Equipment weight | 700KG | 800KG | 750KG | 800KG | |
| Voltage | 220VAC (standard) | ||||
| Frequency | 50HZ/60HZ | ||||
| Power | 3KW | 4KW | |||
| Air pressure | 0.5-0.8Mpa | ||||
| Technical Characteristic | Applicable workpiece | Suitable for detecting workpieces that cannot stand, such as screws, bolts and other workpieces that can be hung. | |||
| Feeding method | Rail conveyors | ||||
| Feeding direction | clockwise/counterclockwise | ||||
| Inspectable items | Thickness, diameter, diagonal, blocked holes, cracks, characters, pits and other dimensional appearance defects | ||||
| Maximum number of cameras | 4 Pcs | 12 Pcs | 4 Pcs | 12 Pcs | |
| Speed | ±450Pcs/min | ±600Pcs/min | ±400Pcs/min | ±250Pcs/min | |
| Accuracy | ≥±0.002mm | ||||
| Accessories can be added | It can be equipped with vertical feeding machines, climbing machines, turnover systems, etc., and can be connected to packaging and baling machines. | ||||
| Computer | Standard I7 industrial-grade computer (AI algorithm equipped with NVIDIA high computing power graphics card) | ||||
| Software platform | All support UNITECHO's three self-developed software algorithm platforms: UZVISION vision platform + AI algorithm platform UIDI + AI defect generation software UIDG | ||||
